Parts Of A Drill

Drills are essential tools in any workshop or toolbox, used for a variety of tasks from woodworking to metalworking. Understanding the parts of a drill is crucial for effective use and maintenance. This guide will walk you through the key components of a drill, their functions, and how to care for them.

Understanding the Basic Parts of a Drill

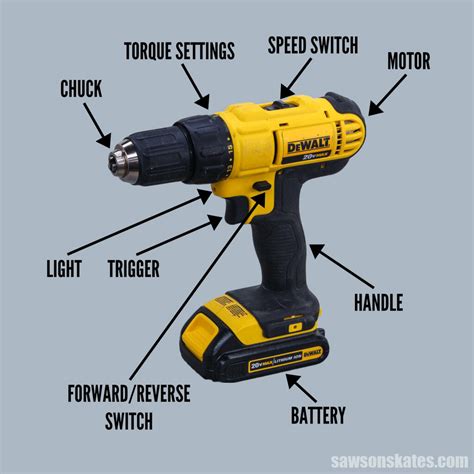

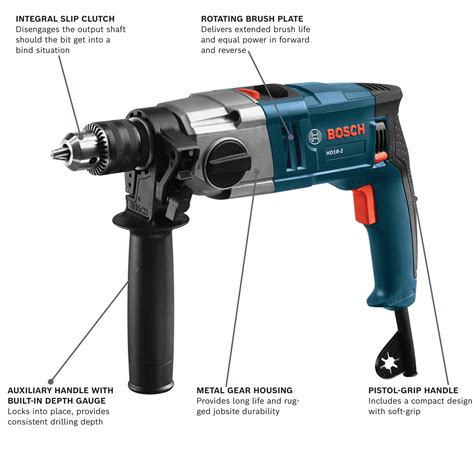

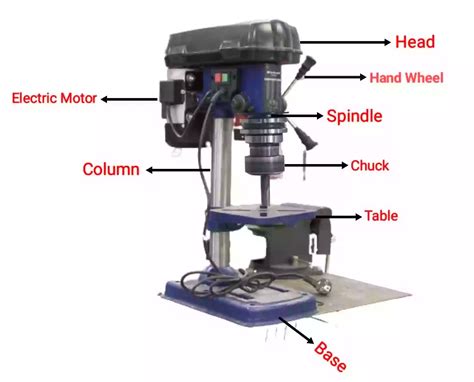

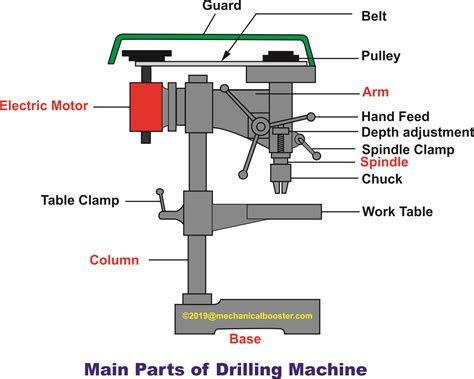

Before diving into the specifics, it's important to recognize the basic parts of a drill. These include the motor, chuck, trigger, handle, and drill bit. Each part plays a vital role in the drill's operation and efficiency.

Motor

The motor is the heart of the drill, providing the power needed to rotate the drill bit. There are two main types of motors used in drills: brushed and brushless.

Brushed Motors: These are more common in entry-level drills. They are less expensive but require more maintenance due to the brushes that wear out over time.
Brushless Motors: These are found in higher-end models and are more efficient and durable. They offer better performance and longer battery life.

Understanding the type of motor in your drill can help you make informed decisions about maintenance and upgrades.

Chuck

The chuck is the part of the drill that holds the drill bit in place. It is typically located at the end of the drill and can be adjusted to fit different sizes of drill bits. There are two main types of chucks: keyed and keyless.

Keyed Chucks: These require a chuck key to tighten or loosen the jaws. They are generally more secure but can be inconvenient to use.
Keyless Chucks: These can be tightened or loosened by hand, making them more convenient but sometimes less secure.

Choosing the right chuck depends on your specific needs and the type of work you will be doing.

Trigger

The trigger is the switch that controls the drill's power. It is usually located on the handle and allows you to start and stop the drill with ease. Some drills also have a variable speed trigger, which lets you adjust the speed of the drill bit.

Using the trigger effectively can help you achieve better control and precision in your drilling tasks.

Handle

The handle is the part of the drill that you hold while operating it. It is designed to provide a comfortable and secure grip, reducing fatigue and improving control. Handles can be made from various materials, including plastic and rubber, and may have different shapes and sizes to accommodate different hand sizes.

Choosing a drill with a comfortable handle can make a significant difference in your drilling experience.

Drill Bit

The drill bit is the part of the drill that actually does the drilling. It comes in various shapes and sizes, each designed for specific tasks. Common types of drill bits include:

Twist Bits: These are the most common type of drill bit, used for general-purpose drilling in wood, metal, and plastic.
Spade Bits: These are flat bits with a sharp point, used for drilling large holes in wood.
Forstner Bits: These are used for drilling precise, flat-bottomed holes in wood.
Masonry Bits: These are designed for drilling into concrete, brick, and other masonry materials.

Selecting the right drill bit for your task is essential for achieving the best results.

Advanced Parts of a Drill

In addition to the basic parts of a drill, there are several advanced components that enhance the drill's functionality and performance. These include the gearbox, clutch, and battery.

Gearbox

The gearbox is responsible for transferring power from the motor to the chuck. It allows the drill to operate at different speeds and torques, making it suitable for a wide range of tasks. There are two main types of gearboxes: single-speed and variable-speed.

Single-Speed Gearboxes: These provide a fixed speed and torque, suitable for basic drilling tasks.
Variable-Speed Gearboxes: These allow you to adjust the speed and torque, making them more versatile for different materials and tasks.

Understanding the gearbox in your drill can help you choose the right settings for your specific needs.

Clutch

The clutch is a mechanism that controls the amount of torque applied to the drill bit. It helps prevent over-tightening and stripping of screws, making it an essential feature for screwdriving tasks. The clutch can be adjusted to different settings, allowing you to control the torque based on the material and task.

Using the clutch effectively can help you achieve better results and reduce the risk of damaging your materials.

Battery

For cordless drills, the battery is a crucial component that provides the power needed to operate the drill. There are two main types of batteries used in cordless drills: nickel-cadmium (NiCd) and lithium-ion (Li-ion).

Nickel-Cadmium Batteries: These are older technology and are less efficient and more prone to the "memory effect," where the battery loses capacity over time.
Lithium-Ion Batteries: These are more modern and offer better performance, longer battery life, and no memory effect. They are the preferred choice for most cordless drills.

Choosing the right battery for your drill can significantly impact its performance and longevity.

Maintaining the Parts of a Drill

Maintaining the parts of a drill is essential for ensuring its longevity and performance. Regular maintenance can prevent issues and extend the life of your drill. Here are some key maintenance tips:

Cleaning the Drill

Regularly cleaning your drill can help prevent dust and debris from accumulating and causing damage. Use a soft brush or compressed air to clean the drill, paying special attention to the chuck and gearbox.

🛠️ Note: Always unplug the drill or remove the battery before cleaning to ensure safety.

Lubricating the Drill

Lubricating the moving parts of the drill can help reduce friction and wear. Use a high-quality lubricant designed for power tools and apply it to the chuck, gearbox, and other moving parts as needed.

🛠️ Note: Avoid over-lubricating, as excess lubricant can attract dust and debris.

Checking the Chuck

The chuck is a critical part of the drill and should be checked regularly for wear and tear. Ensure that the jaws are tight and secure, and replace the chuck if it becomes damaged or worn out.

🛠️ Note: Always use the correct size of drill bit for the chuck to prevent damage.

Inspecting the Battery

For cordless drills, regularly inspecting the battery can help ensure optimal performance. Check for signs of damage, such as leaks or swelling, and replace the battery if necessary. Store the battery in a cool, dry place when not in use to extend its life.

🛠️ Note: Avoid overcharging or discharging the battery completely, as this can reduce its lifespan.

Troubleshooting Common Issues

Even with proper maintenance, issues can arise with the parts of a drill. Here are some common problems and their solutions:

Drill Won't Start

If your drill won't start, check the following:

Ensure the battery is charged or the drill is plugged in.
Check the trigger and make sure it is functioning properly.
Inspect the motor and gearbox for any signs of damage or wear.

If the problem persists, it may be necessary to replace the motor or gearbox.

Drill Bit Won't Stay in Place

If the drill bit keeps slipping out of the chuck, check the following:

Ensure the chuck is tightened properly.
Inspect the chuck for any signs of wear or damage.
Use the correct size of drill bit for the chuck.

If the problem continues, you may need to replace the chuck.

Drill Overheats

If your drill overheats, check the following:

Ensure the drill is not being overused or pushed too hard.
Check the motor and gearbox for any signs of damage or wear.
Allow the drill to cool down periodically during use.

If the problem persists, it may be necessary to replace the motor or gearbox.

Safety Tips for Using a Drill

Using a drill safely is crucial to prevent injuries and ensure the longevity of the tool. Here are some important safety tips:

Always wear safety glasses to protect your eyes from debris.
Use ear protection to reduce noise levels.
Wear gloves to protect your hands from sharp edges and hot surfaces.
Ensure the drill is unplugged or the battery is removed before changing drill bits or performing maintenance.
Keep your hands away from the moving parts of the drill.
Use the correct drill bit for the material you are working with.
Avoid drilling into live electrical wires or pipes.

Following these safety tips can help you use your drill safely and effectively.

Drills are versatile tools that can handle a wide range of tasks, from simple home repairs to complex construction projects. Understanding the parts of a drill and how they work together is essential for getting the most out of your tool. Regular maintenance and proper use can extend the life of your drill and ensure it performs reliably for years to come.

By familiarizing yourself with the key components of a drill, you can make informed decisions about maintenance, upgrades, and troubleshooting. Whether you're a DIY enthusiast or a professional contractor, knowing the parts of a drill is crucial for achieving the best results and ensuring the longevity of your tool.

From the motor and chuck to the trigger and handle, each part of the drill plays a vital role in its operation. By understanding these components and how they work together, you can use your drill more effectively and safely. Regular maintenance and proper use can help you get the most out of your drill and ensure it performs reliably for years to come.
